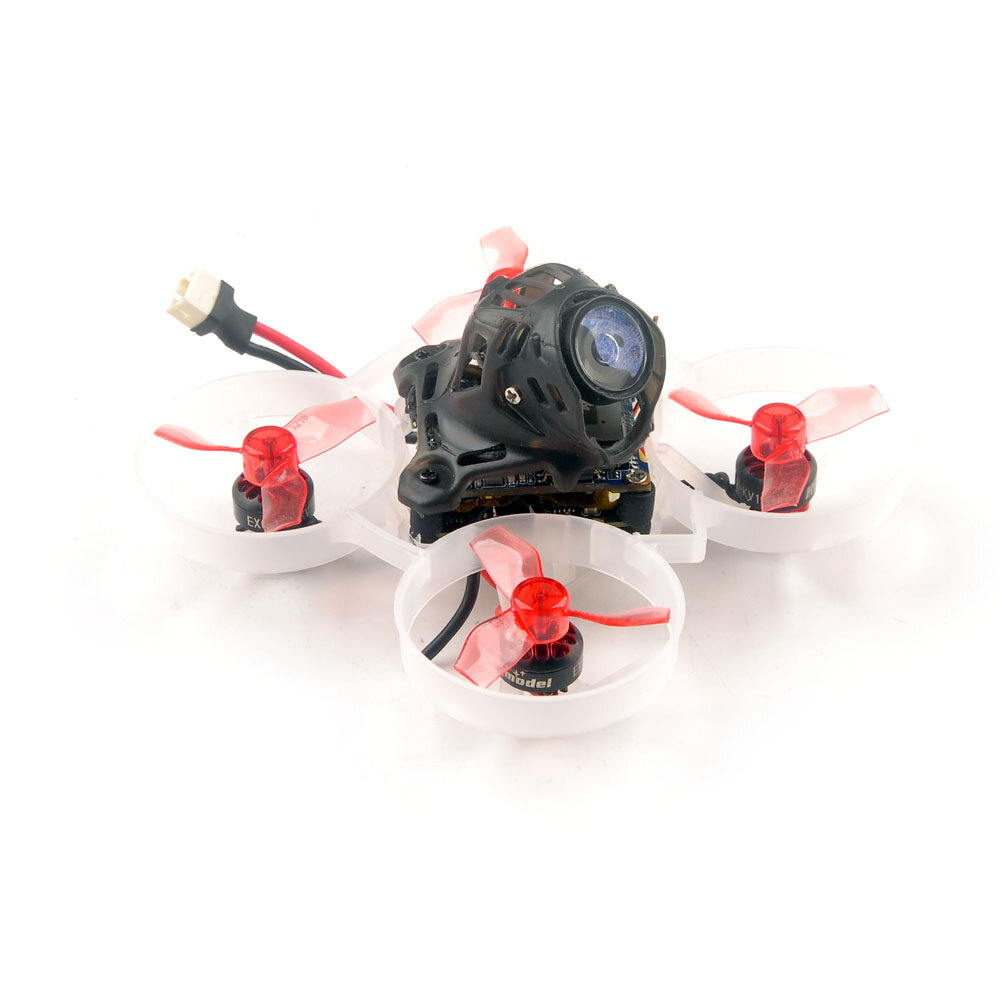

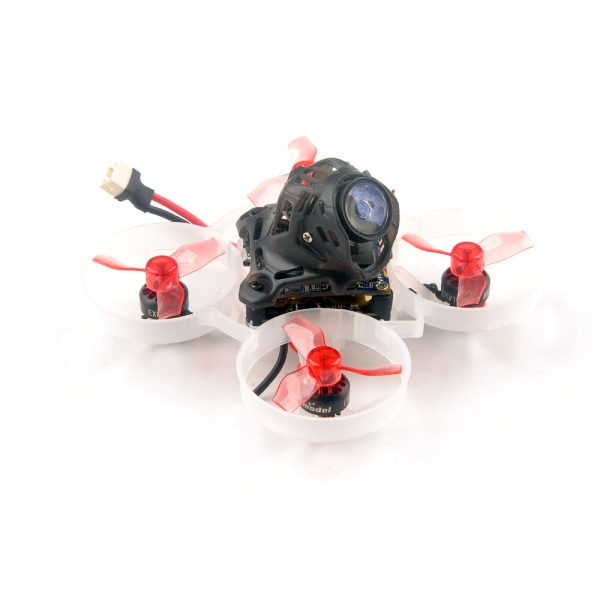

27g Happymodel Mobula6 HD M6 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone BNF w/ Runcam Split3-lite 1080P HD DVR Camera

$175.99

CHECK PRICE

Description

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.



Notice: The flight controller of DSM2/DSMX version Mobula6 HD has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver.

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 HD 1S 65mm Brushless whoop HD drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*40mm

Weight: 27g

Receiver option:

Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

External DSM2/DSMX version(Compatible with Spektrum DSM2/X transmitters)

External TBS CRSF NANO version(Compatible with TBS ransmitters)

Spare parts specifications:

Motor Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only
Propellers Gemfan 1219-3
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.28g
Flight controller (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
(External DSM2/DSMX RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX
(External TBS CRSF NANO RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 or  ICM20689 or BMI270.(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky SPI receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support
External DSMX version Resolution: 1024/2048
Operating voltage: 3.3V
Working current: 60MA
Size: 15mm*10mm*5mm
Antenna length: 30mm
Protocol: DSM2/DSMX
External TBS CRSF Nano receiver version Original TBS CRSF Receiver  ,CRSF Protocol , Official TBS transmitter compatible
Onboard 5.8g VTX Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Runcam Split3-Lite Model: RunCam Split3-Lite
Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format: MOV
Image Resolution:2 MP
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: JST 1.25mm / UART and SH 1.0mm
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation: 25.5*25.5mm
PCB Size: 29*29mm
Lens Module Size: 14*14mm
Lens Specs: M9
Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
Working Current: 450mA @5V
Lipo Battery Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 55mmx12mmx7mm
Weight: 6.5g
Connector: PH2.0


Features:

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

Extreme light 1S 65mm Brushless HD whoop only 27g

Come with Runcam Split3-lite 1080P HD DVR

Smooth and agile

Compatible for 1S Lipo/LIHV

Camera Angle adjustable

 Package Included:
 1 x Mobula6 1S 65mm Whoop Drone Frame
 1 x SPI Receiver Option1: Crazybee F4 Lite FC Built-in Frsky SPI D8 RX
       SPI Receiver Option2: Crazybee F4 Lite FC Built-in Flysky SPI RX
      External receiver option1DSM2/DSMX compatible Satellite Receiver
       External receiver option2TBS CRSF NANO Receiver
 4 x EX0802 KV19000 Brushless Motor
 1 x Gemfan 1219-3 Propellers(4cw+4ccw)
 1 x Runcam Split3-lite 1080P HD Camera +DVR
 1 x 5.8G 25mW 40ch VTX (Flight Controller Built-in)
4 x 1S 250mah 30C LiHV Battery
 1 x 1S Lipo/LIHV USB Charger
 1 x Propeller Disassemble Tool
